Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l

Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l
Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l

Large Image :  Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l

Product Details:
Place of Origin: China
Brand Name: HSITC
Certification: Api 5l,Iso9001,En1027,En10219,BC1,En10210,Iso3183,Astm a252
Model Number: Dn200mm-Dn3000mm
Payment & Shipping Terms:
Minimum Order Quantity: 100 T
Price: Negotiation
Packaging Details: Anti rust painting or bare pipe or 3lpe coating and fbe linging epoxy paint internal
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 5000 tons per month

Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l

Description
Process: Spiral Submerged- Arc Welded Steel Pipe Standard: API 5L, ASTM A252, EN10217-1,2,5, EN10219-1, BS, JIS, IS
OD: Dn200-Dn3000mm Wall Thickness: 6mm-25.4mm
Inch: 8"-120" Grade: GR B, X42, X46, X56, X60, X65, X70,gr.2.3,S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2H
Application: Water, Gas, And Oil; Construction And Piling Origin: China
High Light:

Dn200mm 6mm SSAW Steel Pipe

,

Dn200mm Api 5l gas line pipe

,

8" SSAW Steel Pipe

Hydro Test Chemical Component Analysis Mechanical Properties SSaw Steel Pipe

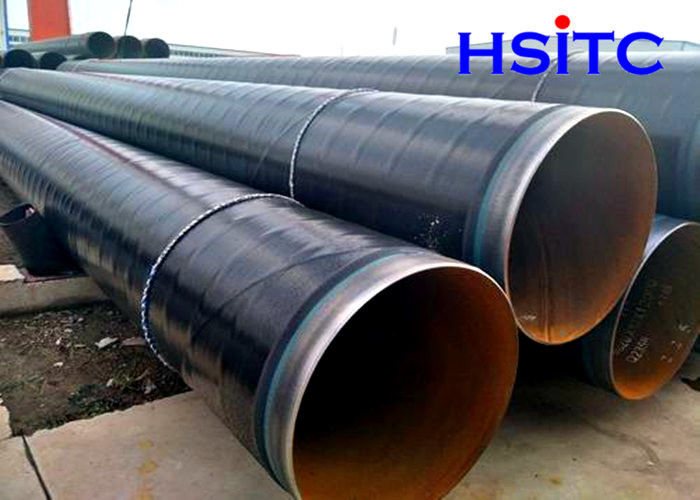

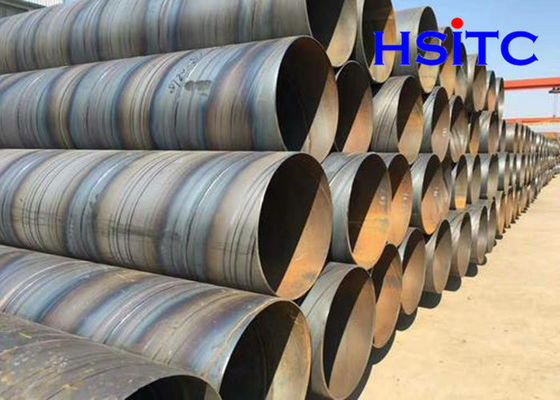

SSAW Steel Pipe (Spiral steel tube) is a spiral welded steel tube made of strip steel coil as raw material, usually formed by warm extrusion, and welded by automatic double-wire double-side submerged arc welding process. The spiral steel tube feeds the strip into the welding tube unit, and after rolling with multiple rollers, the strip is gradually rolled up to form a round tube blank with open clearance.



The pressure reduction of the extrusion roller is adjusted so that the weld clearance is controlled at 1~3mm and both ends of the welding joint are flush.Main technological features of spiral steel tube:In the forming process, the steel plate deformation uniformity, the residual stress is small, the surface does not produce scratches.Process: Spiral Submerged- Arc Welded Steel Pipe Usage: Used for low pressure liquid transportation, such as water, gas, and oil;



Spiral steel pipe is mainly used in tap water engineering, petrochemical industry, chemical industry, electric power industry, agricultural irrigation, urban construction, is one of the 20 key products developed in China.For liquid transport: water supply, drainage. For gas transmission: gas, steam, liquefied petroleum gas. For structural use: as pile driving pipe, as bridge; Pipes for wharves, roads, building structures, etc.Our manufacturing is ISO 9001:2008 certified, and our pipes meet API, CE, TUV, ASTM, JIS, EN, DIN, ANSI Standards.



Product Hydro Test Chemical Component Analysis Mechanical Properties SSaw Steel Pipe
Standard Awwa c200 Astm a139 En10219,En10217-1,API 5L PSL1,Astm a252
Material Grade 2,Grade 3, 40,50,a36,B,C,D,S355J0H,s235jrh,s355j2h,S275
OD 219-3048 mm
Wt 6-25mm
Length 6-15 meter



Dn200mm Spiral Submerged ASTM A252 6mm 8" SSAW Steel Pipe Api 5l 0
