Asme B16.9 1422mm Weldable Steel Pipe Fittings SCH10

Product Details:

Place of Origin:	CHINA
Brand Name:	HSITC
Certification:	ISO 9001 ASTM A234 ASTM B16.9
Model Number:	1"-56"

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	Negotiation
Packaging Details:	Wooden cases, wooden pallets and as customers request
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

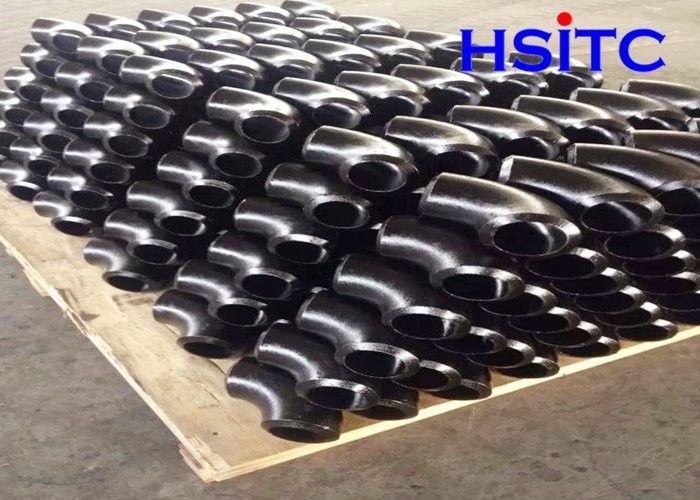

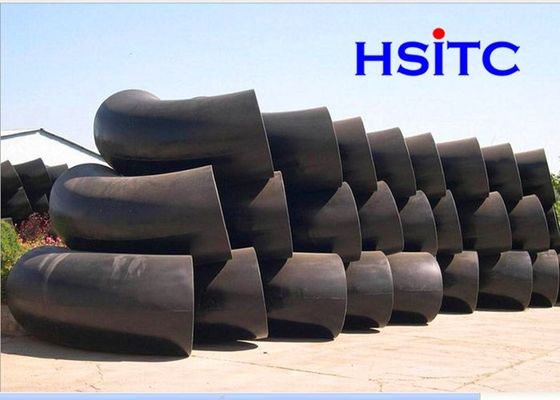

Product:	Carbon Steel Pipe Elbow	Standard:	Asme B16.9
Thickness:	SCH10 STD SCH40 XS	Application:	Water Transmission Project
Surface:	Black Painting,anti-rust Varnishes	Material:	ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366
Nps:	1-56"	Diameter:	33.4mm-1422mm
Highlight:	Asme B16.9 1422mm weldable steel pipe fittings , 1422mm carbon steel tube fittings , SCH10 1422mm weldable steel pipe fittings

Asme B16.9 Standard Dimensions Of Long Radius Elbows Carbon Steel Pipe Elbow

Wrought fittings covered by this Standard shall be in accordance with ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366, or the corresponding specification listed in ASME BPVC, Section II. The term “wrought” denotes fittings made of pipe, tubing, plate, or forgings.

For purposes of deter mining proof testing requirements of section 9, the mate rials are grouped by similar properties as shown in Table 5-1. Fittings made from block forgings may only be supplied subject to agreement between the manufacturer and purchaser. Such fittings need not meet the requirements of section 7. For applications where fatigue loading is a concern, required minimum dimensions shall be furnished by the purchaser. Fittings may be made to special dimensions, sizes, shapes, and tolerances by agreement between the manufacturer and the purchaser. This Standard states values in both SI (Metric) and U.S.Customary units.

These systems of units are to be regarded separately as standard. Within the text and tables, the U.S. Customary units are shown in parentheses. The values statedin each systemare not exact equivalents;therefore, it is required that each system of units be used independently of the other. Combining values from the two systems constitutes nonconformance with the Standard. The ways of connecting with the pipe are: direct welding (the more common way) flange connection, hot melt connection, electric melt connection, thread connection and socket connection, etc.

product	Carbon Steel Pipe Elbow
standard	Astm a234 Asme B16.9
material	ASTM A234, ASTM A403, ASTM A420
thickness	sch20 sch40 STD XS SCH80
elbow type	seamless or welded
certification	iso 9001 ce ansi
radius	R=1.5d,R=1.0d
degree	30 45 60 90 180
