Product Details:
|
| Size: | 1"-24" | OD: | 3.75-36" |
|---|---|---|---|
| Thickness: | 0.56-2.75" | Rise Face: | 1.38-27.25 |
| Use: | Flange Connecting Pipe To Pipe, Flange Connecting Valve To Pipe, Flange Connecting Pump To Motor | PN: | Mpa(bar)0.6 1.0 1.6 2.5 4.0 6.4 |
| Face Sealing: | FF,RF,MFM... | Steel: | ASTM A105,20#、Q235、16Mn、 ASTM A350 LF1,LF2 CL1/CL2,LF3 CL1/CL2、ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70 |
| High Light: | ASME B16.5 Carbon Steel Flanges,Ss400 24" weld neck flange,Class 300 Carbon Steel Flanges |
||

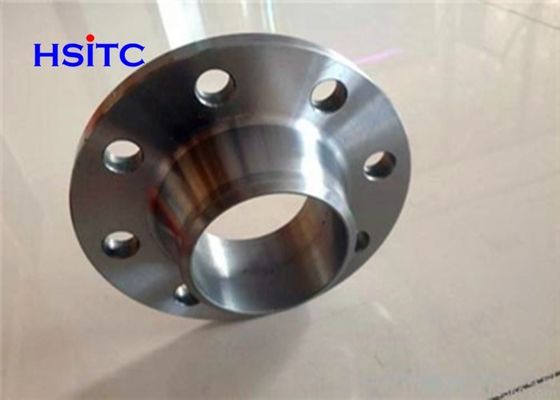

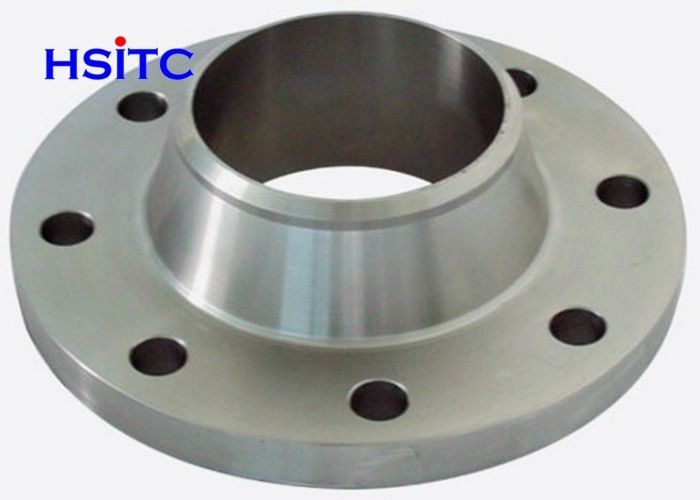

ANSI B16.5 CIndustrial Pipe Flange Class 150 Slip On Carbon Steel Flanges
An Industrial Pipe Flange can be a collar, ring or solid disk that attaches to various pipe applications that allow or restrict the flow of liquids and gases. Pipe Flange installment is usually completed by welding the Flange onto the pipe but the Industry also offers Threaded and Lap Joint Flanges that don’t require welding for installment.Flange connections are achieved by drilling equally spaced bolt holes into the Flange that align with the matching Flange and then fastened with bolts. Bolt hole patterns are determined by Industry Specifications or customer request. Flanges are usually manufactured based on Industry Specifications established by ANSI B16.5, ASME B16.47, MSS-SP44, API, and AWWA-C207.
Custom and Project Oriented Flanges are gaining popularity as new technology and equipment is constantly being developed. provide excellent service to our customers for both Custom Flanges and Industry Specified Flanges in Carbon, Stainless, and Exotic materials. Flange has the capability to manufacture Flanges for all pressure ratings including 75#, 125#, 150#, 175#, 250#, 300#, 350#, 400#, 600#, 900#, 1500#, and 2500#.
| Standard | ANSI B16.5 |
| Class | 150#, 175#, 250#, 300#, 350#, 400#, 600#, 900#, 1500# |
| Type | welding neck flange |
| Use | Industry Pipeline, Water Projects,connecting pipe to pipe, valve to pipe, pump to motor |
| Origin | China Factory |
