Product Details:
|
| Type: | Slip On Flange | Yield Strength: | 250 Mpa (Min) |
|---|---|---|---|

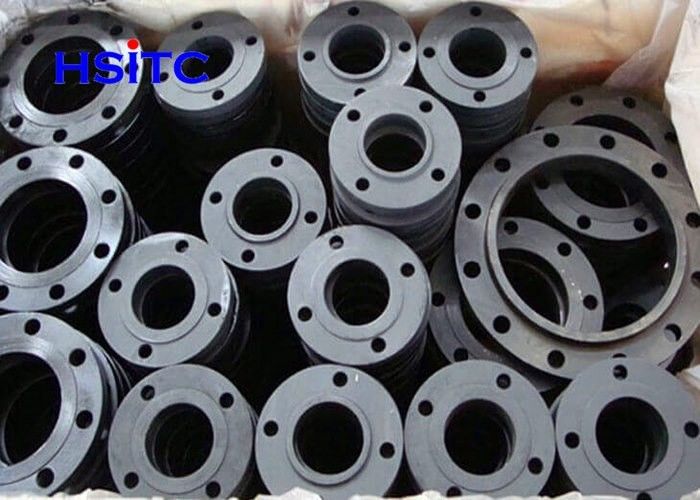

| Coating: | Anti-rust Painting | Strength: | Higher Tensile Strength |
| Use: | Flange Connecting Pipe To Pipe, Flange Connecting Valve To Pipe, Flange Connecting Pump To Motor | PN: | Mpa(bar)0.6 1.0 1.6 2.5 4.0 6.4 |
| Face Sealing: | FF,RF,MFM... | Steel Grade: | ASTM A105,20#、Q235、16Mn、 ASTM A350 LF1,LF2 CL1/CL2,LF3 CL1/CL2、ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70 |
| High Light: | Astm A105 Carbon Steel Flanges,B16.5 galvanized steel flange,48" Carbon Steel Flanges |
||
ASME B16.5 Class400 So Welding Neck Blind Threaded Pressure Carbon Steel Flanges
Carbon Steel Flange and end flange connectors are basically made of carbon steel. Common standards include ASTM A694, ASTM A105N (SA105N), MSS SP-44, DIN 2533. Accompanying pressure ratings are from class 150 to 2500.Carbon steel is a steel with carbon content up to 2.1% by weight. Where in AISI defines:No alloy element (minimum content) required, as of Cr, Mo, Ni, Ti, Va and etc.Specified minimum of Cu shall not exceed 0.04%.Maximum Mn 1.65%, Si 0.06%.As carbon element content increases, the steel will become harder and stronger after heat treatment. On the contrary, it become less ductile.
Where if without heat treatment, higher carbon will reduce weldability.Carbon steel may include alloy steels in case it is not used as stainless steel.They are usually welded or screwed to the pipe end and are connected with bolts. A gasket is inserted between the two mating flanges to provide a tighter seal. These flanges are either custom with dimensions provided by the customer or they are manufactured according to published specifications. Differences between forged steel flange and cast iron flange
Forging process is more expensive than the cast iron process
Casting iron can be manufactured to fit different complex profiles
Forging process doesn't lead to the manufacture of big or uneven brain
Cast iron flange is used exclusively for non-pressure pipelines, while forged Steel Flange is used in higher pressure pipeline
| Standard | ANSI B16.5,ASME B16.47, MSS-SP44, API, and AWWA-C207. |
| Class | 150#, 175#, 250#, 300#, 350#, 400#, 600#, 900#, 1500# |

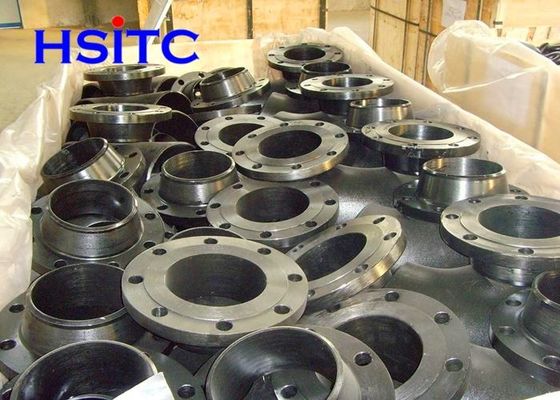

| Type | welding neck flange |
| Use | Industry Pipeline, Water Projects,connecting pipe to pipe, valve to pipe, pump to motor |
| Origin | China Factory |
