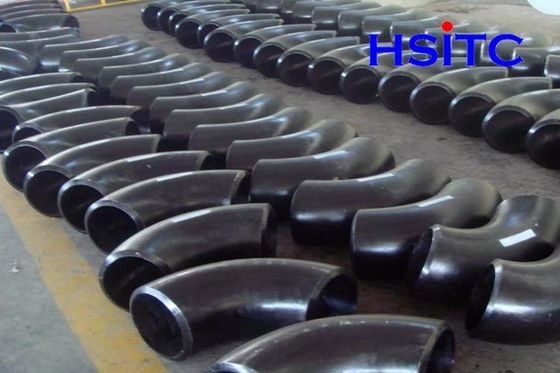

Product Details:
|
| Product: | 33.4mm Dia Deg 90 Mild Steel Elbow Astm A420 A420m | Standard: | Asme B16.9 Ansi B16.28 |
|---|---|---|---|
| Thickness: | SCH10 STD SCH40 XS SCH60 SCH80 | Application: | Water Transmission Project |
| Surface: | Black Painting,anti-rust Varnishes | Material: | ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366 |
| Nps: | 1-56" | Diameter: | 33.4mm-1422.4mm |
| High Light: | 33.4mm dia mild steel elbow,astm a420 mild steel elbow,a420m carbon steel 90 degree elbow |
||
Angle Of Segmented Elbow 30 Deg, 60 Deg 75 Deg 90 Carbon Steel Pipe Elbow
Wrought fittings covered by this Standard shall be in accordance with ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366, or the corresponding specification listed in ASME BPVC, Section II. The term “wrought” denotes fittings made of pipe, tubing, plate, or forgings. For purposes of determining proof testing requirements of section 9, the materials are grouped by similar properties as shown in Table 5-1.
Fittings made from block forgings may only be supplied subject to agreement between the manufacturer and purchaser. Such fittings need not meet the requirements of section 7.
| product | Carbon Steel Pipe Elbow |
| standard | Astm a234 Asme B16.9 |
| material | ASTM A234, ASTM A403, ASTM A420 |
| thickness | sch20 sch40 STD XS XXS SCH80 |
| elbow type | seamless or welded |
| certification | iso 9001 ce ansi |
| radius | R=1.5d,R=1.0d |
| degree | 30 45 60 90 180 |
