Home ProductsSSAW Steel Pipe

Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard

Certification
China Hebei Synda International Trade Co.,Ltd certification
China Hebei Synda International Trade Co.,Ltd certification
I'm Online Chat Now

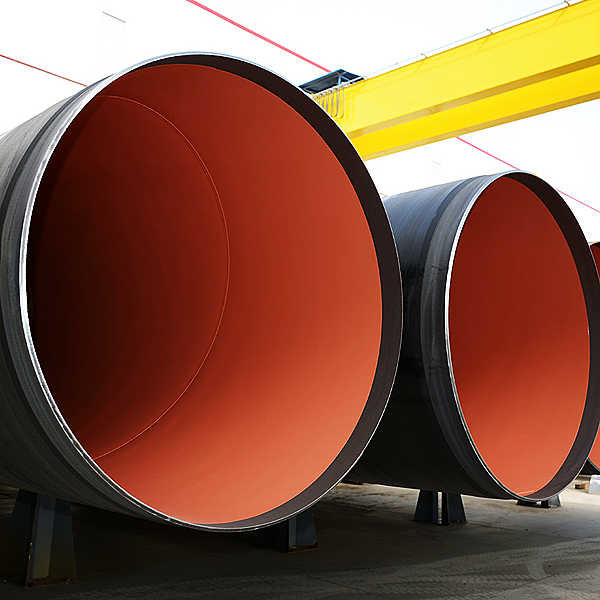

Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard

Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard
Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard

Large Image :  Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard

Product Details:
Place of Origin: China
Brand Name: Synda
Certification: Api 5l,Iso9001,En1027,En10219,BC1,En10210,Iso3183,Astm a252
Model Number: 12-80 inch
Payment & Shipping Terms:
Minimum Order Quantity: 100 T
Price: Negotiation
Packaging Details: Anti rust painting or bare pipe or 3lpe coating and fbe linging epoxy paint internal
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 5000 tons per month

Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard

Description
Type: Ssaw Steel Pipe Application: Liquefied And Pressure Water Or Gas Or Oil, Pilings, Structure Building
Surface: Galvanized,Paint,Coating 3pe,2pe,3pp,FBE,Epoxy, Standard: API5L PSL1,PSL2,ASTM A252,ASTM A139,EN10217,EN10219
OD: Dn200-DN3500 Mm Wt: 6-25.4mm
Original: China Length: 5.8-15 Meter
End: Plain Ends / Bevel Ends Packing: Standard Packing
High Light:

80 inch spiral welded steel pipe

,

25.4mm thick spiral welded steel pipe

,

fusion bond epoxy ssaw steel pipe

Fusion Bond Epoxy 3-Layers PE Ssaw Steel Pipe DIN 30670 Polyethylene Standard



What is SSAW Steel Pipe?

Spiral steel pipe is a steel strip coil plate of raw materials, often warm extrusion molding, with automatic double wire welding double-sided submerged arc welding technology with the spiral seam pipe.Spiral steel pipe will strip into welded pipe unit, the multichannel roll rolling, strip steel rolled up gradually, there is an open space form of round billet, adjust the quantity of the squeezing roller, make the weld gap control in 1 ~ 3 mm, and make joint flush on both ends.



Uses of SSAW spiral welded steel pipes

Transporting liquids,Low-pressure applications,Piling pipe,Under ocean water application,Water lines,Pipe bridge,Oil & gas,Drainage projects,Construction piling,Irrigation,Boiler Manufacturing,Sewage Treatment,Thermal Industry,Road & highways,Retaining walls,Trestle,Seawalls,Cofferdams,Harbor structure



Coating Standard:

ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for ductile-iron Pipe and Fittings for water

DIN 30670 Polyethylene coatings of steel and fittings


Place of Origin: Cangzhou City, Hebei Province, China Application: Water supply, Drainage,Sewage treatment, Structure, Irrigation, Petrochemical, Natural gas, Steam, Liquefied gas,Piling, Bridge, Wharf, Highway, Building.
Alloy Or Not: Non-Alloy or Alloy Section Shape: Round
Pipe Kind: Thicker Wall Pipe Outer Diameter: 219- 3500 mm
Thickness: 6 mm - 25 mm Standard: GB9711,SY5037,API5L PSL1,PSL2,ASTM A252,ASTM A139,EN10217,EN10219....
Length: 5.8-15 meter Certificate: ISO9001/ISO14001/ISO18001/API 5L/CE/CNAS/Lloyd's/ILAC
Technique: SAWH or SSAW Grade: Q235,SS400,S235,Q355,S355,S420,GR.B,X42,X52,X60,X65,X70,GR.2,GR.3,ST52,K52
Tolerance: ±5% Surface Treatment: Galvanized,Paint,Coating 3pe,2pe,3pp,FBE,Epoxy,...
Oiled or Non-oiled: Non-oiled Processing Point: Plate uncoiling, Bending, Inner and Outside Welding, Cutting,Test....
Delivery Time: 15-30 days Invoicing: Theoretical or Actual Weight
Ends: Plain Ends / Bevel Ends Welding Type: SAW Submerged Arc Welded
Packing: Standard Packing Usage: Liquefied and Pressure water or gas or oil, Pilings, Structure Building
Supply Ability: 10000 Metric Ton/Month Market: Asia,Africa, Middle East,Europe,America,South America...
Loading Port: China Loading Port Property: Mechanical and Chemical Composition

Fusion Bond Epoxy Spiral Welded Steel Pipe 3 Layers Pe Din 30670 Polyethylene Standard 0
