Product Details:
|
| Standard: | En10219,En10217,Api5l Psl1 | Material: | P235tr1 S355JR ST37 ST52 H40 S235,x42,x52 |
|---|---|---|---|
| Length: | 12 Meter | Type: | HSAW Steel Pipe,Sawh Steel Pipe |
| Application: | For Liquid Transport | Name: | En 10219 Standards Ssaw Tube Pressure Purposes P235tr1 Grade |
| DN: | DN200-DN3500 | WT: | 6MM-24.5MM |
| High Light: | 3lpe Coating Ssaw Steel Pipe,3.0mm Thickness Ssaw Steel Pipe,Ssaw Steel Pipe Sch80 |
||

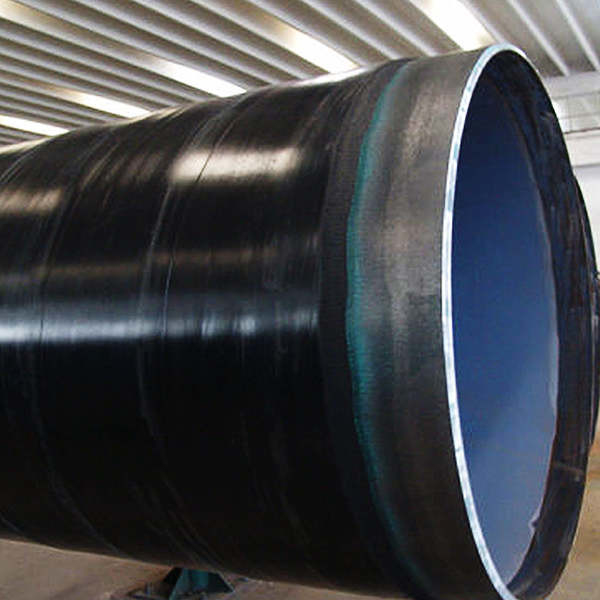

3lpe Coating External 3.0mm Thickness Ssaw Steel Pipe Sch80 Api 5l Psl1
SSAW pipe diameter range is generally 8 inches to 126 inches (219mm to 32000mm).
SSAW steel pipe is formed by rolling and welding a steel strip in a helix or spiral direction, making the weld seam in a spiral line. The spiral welded process makes it possible to create large diameter options. Spiral steel pipes are mainly used for low-pressure fluid transmissions such as pipelines on offshore platforms, petrochemical industry plants or shipyards as well as civil construction and pile driving.
How To Order Steel Pipe For Your Project
When ordering steel pipes, there are two key dimensions: the nominal pipe size (NPS) or OD(mm) and the wall thickness (mm). Pipe lengths can be single random (SRL) 5-7 meters or double random length (DRL) 11-13 meters. Custom lengths can be used for long pipelines. Pipe ends can be bevelled (BE), plain (PE).
| Place of Origin: | Cangzhou City, Hebei Province, China | Application: | Water supply, Drainage,Sewage treatment, Structure, Irrigation, Petrochemical, Natural gas, Steam, Liquefied gas,Piling, Bridge, Wharf, Highway, Building. |
| Alloy Or Not: | Non-Alloy or Alloy | Section Shape: | Round |
| Pipe Kind: | Thicker Wall Pipe | Outer Diameter: | 219- 3500 mm |
| Thickness: | 6 mm - 25 mm | Standard: | GB9711,SY5037,API5L PSL1,PSL2,ASTM A252,ASTM A139,EN10217,EN10219.... |
| Length: | 5.8-15 meter | Certificate: | ISO9001/ISO14001/ISO18001/API 5L/CE/CNAS/Lloyd's/ILAC |
| Technique: | SAWH or SSAW | Grade: | Q235,SS400,S235,Q355,S355,S420,GR.B,X42,X52,X60,X65,X70,GR.2,GR.3,ST52,K52 |
| Tolerance: | ±5% | Surface Treatment: | Galvanized,Paint,Coating 3pe,2pe,3pp,FBE,Epoxy,... |
| Oiled or Non-oiled: | Non-oiled | Processing Point: | Plate uncoiling, Bending, Inner and Outside Welding, Cutting,Test.... |
| Delivery Time: | 15-30 days | Invoicing: | Theoretical or Actual Weight |
| Ends: | Plain Ends / Bevel Ends | Welding Type: | SAW Submerged Arc Welded |
| Packing: | Standard Packing | Usage: | Liquefied and Pressure water or gas or oil, Pilings, Structure Building |
| Supply Ability: | 10000 Metric Ton/Month | Market: | Asia,Africa, Middle East,Europe,America,South America... |
| Loading Port: | China Loading Port | Property: | Mechanical and Chemical Composition |
