Product Details:
|
| Standard: | En10219,En10217,Api5l Psl1 | Material: | P235tr1 S355JR ST37 ST52 H40 S235,x42,x52 |
|---|---|---|---|
| Length: | 12 Meter | Type: | HSAW Steel Pipe,Sawh Steel Pipe |
| Application: | For Liquid Transport | Name: | En 10219 Standards Ssaw Tube Pressure Purposes P235tr1 Grade |
| DN: | DN200-DN3500 | WT: | 6MM-24.5MM |
| High Light: | X52 Ssaw Steel Tube,Liquid Transport Ssaw Tube,Api 5l Ssaw Steel Tube |
||
X42 X52 Gr.B Steel Grade Ssaw Steel Tube Electric Power Pipe Bridge

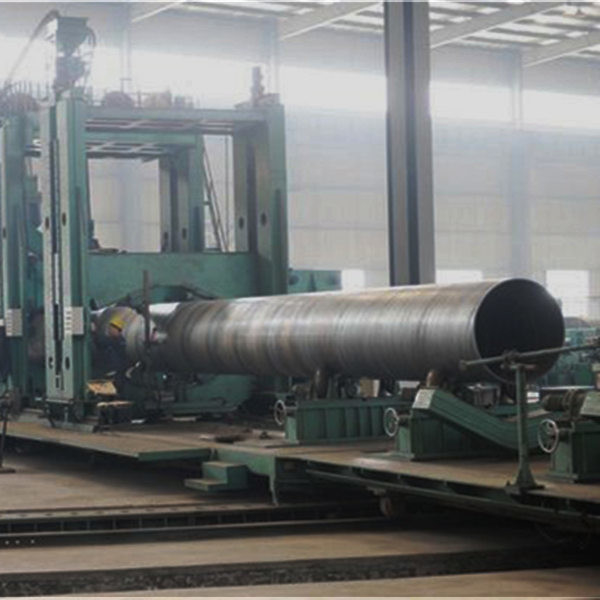

SSAW steel pipe is formed by rolling and welding a steel strip in a helix or spiral direction, making the weld seam in a spiral line. The spiral welded process makes it possible to create large diameter options. Spiral steel pipes are mainly used for low-pressure fluid transmissions such as pipelines on offshore platforms, petrochemical industry plants or shipyards as well as civil construction and pile driving.
TEST: Chemical Component Analysis, Mechanical Properties(Ultimate tensile strength, Yield strength, Elongation), Technical Properties(Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, Pneumatic Test, Ultrasonic Testing (UT), X-ray Test.Mill Test Certificate: En 10204/3. 1B
Third party inspection: SGS,BV, etc.
Surface: Lightly oiled, Hot dip galvanized, Electro galvanised, Black, Bare, Varnish coating/Antirust oil, Protective Coatings(Coal Tar Epoxy; Fusion Bond Epoxy, 3-layers PE)
| Place of Origin: | Cangzhou City, Hebei Province, China | Application: | Water supply, Drainage,Sewage treatment, Structure, Irrigation, Petrochemical, Natural gas, Steam, Liquefied gas,Piling, Bridge, Wharf, Highway, Building. |
| Alloy Or Not: | Non-Alloy or Alloy | Section Shape: | Round |
| Pipe Kind: | Thicker Wall Pipe | Outer Diameter: | 219- 3500 mm |
| Thickness: | 6 mm - 25 mm | Standard: | GB9711,SY5037,API5L PSL1,PSL2,ASTM A252,ASTM A139,EN10217,EN10219.... |
| Length: | 5.8-15 meter | Certificate: | ISO9001/ISO14001/ISO18001/API 5L/CE/CNAS/Lloyd's/ILAC |
| Technique: | SAWH or SSAW | Grade: | Q235,SS400,S235,Q355,S355,S420,GR.B,X42,X52,X60,X65,X70,GR.2,GR.3,ST52,K52 |
| Tolerance: | ±5% | Surface Treatment: | Galvanized,Paint,Coating 3pe,2pe,3pp,FBE,Epoxy,... |
| Oiled or Non-oiled: | Non-oiled | Processing Point: | Plate uncoiling, Bending, Inner and Outside Welding, Cutting,Test.... |
| Delivery Time: | 15-30 days | Invoicing: | Theoretical or Actual Weight |
| Ends: | Plain Ends / Bevel Ends | Welding Type: | SAW Submerged Arc Welded |
| Packing: | Standard Packing | Usage: | Liquefied and Pressure water or gas or oil, Pilings, Structure Building |
| Supply Ability: | 10000 Metric Ton/Month | Market: | Asia,Africa, Middle East,Europe,America,South America... |
| Loading Port: | China Loading Port | Property: | Mechanical and Chemical Composition |
