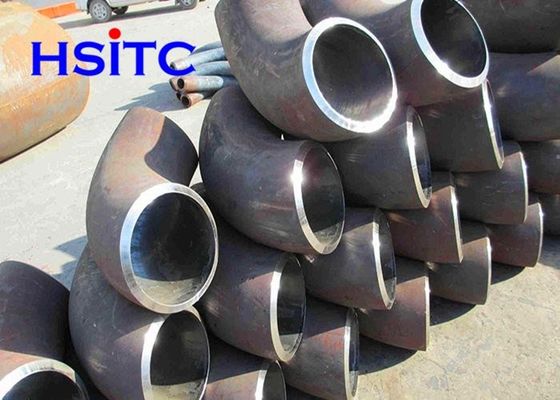

GB12459 1422mm Carbon Steel Pipe Elbow Long Radius 30 Degree

Product Details:

Place of Origin:	CHINA
Brand Name:	HSITC
Certification:	ISO 9001 ASTM A234 ASTM B16.9
Model Number:	1"-56"

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	Negotiation

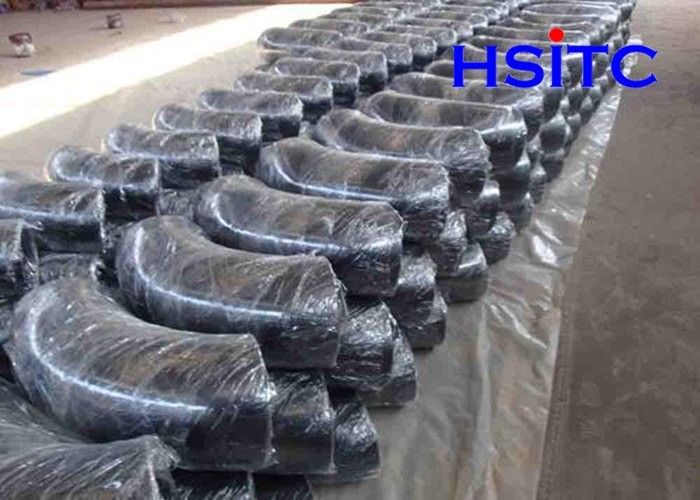

Packaging Details:	Wooden cases, wooden pallets and as customers request
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Product:	Carbon Steel Pipe Elbow	Standard:	Asme B16.9 Ansi B16.28
Thickness:	SCH10 STD SCH40 XS SCH60 SCH80	Application:	Water Transmission Project
Surface:	Black Painting,anti-rust Varnishes	Material:	ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366
Nps:	1-56"	Diameter:	33.4mm-1422mm
Highlight:	GB12459 Carbon Steel Pipe Elbow , 1422mm 30 Degree Steel Pipe Elbow , 1422mm Carbon Steel Pipe Elbow

GB12459 Standard Long Radius 30 60 90 Degree Water Pressure Carbon Steel Pipe Elbow

Fittings made from block forgings may only be supplied subject to agreement between the manufacturer and purchaser. Such fittings need not meet the requirements of section 7. For applications where fatigue loading is a concern, required minimum dimensions shall be furnished by the purchaser. Fittings may be made to special dimensions, sizes, shapes, and tolerances by agreement between the manufacturer and the purchaser.

The ways of connecting with the pipe are: direct welding (the more common way) flange connection, hot melt connection, electric melt connection, thread connection and socket connection, etc.According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow and so on.Other names: 90 degree bend, right Angle bend, etcCarbon steel elbow can be divided into long radius elbow and short radius elbow according to its radius of curvature.Long radius elbow refers to the outer diameter of the pipe whose radius of curvature is equal to 1.5 times, i.e., R= 1.5d.

Product furnished to this specifification shall conform to the requirements of Specifification A960/A960M, including any supplementary requirements that are indicated in the purchase order. Failure to comply with the requirements of Specifification A960/A960M constitutes non-conformance with this specififi-cation. In case of a conflflict between the requirements of this specifification and Specifification A960/A960M, this specifification shall prevail.Wrought fittings covered by this Standard shall be in accordance with ASTM A234, ASTM A403, ASTM A420, ASTM A815, ASTM B361, ASTM B363, ASTM B366, or the corresponding specification listed in ASME BPVC, Section II. The term “wrought” denotes fittings made of pipe, tubing, plate, or forgings.This Standard states values in both SI (Metric) and U.S.Customary units. These systems of units are to be regarded separately as standard. Within the text and tables, the U.S. Customary units are shown in parentheses. The values statedin each systemare not exact equivalents;therefore, it is required that each system of units be used independently of the other. Combining values from the two systems constitutes nonconformance with the Standard.

product	Carbon Steel Pipe Elbow
standard	Astm a234 Asme B16.9
material	ASTM A234, ASTM A403, ASTM A420
thickness	sch20 sch40 STD XS XXS SCH80
elbow type	seamless or welded
certification	iso 9001 ce ansi
radius	R=1.5d,R=1.0d
degree	30 45 60 90 180
