S195 Metal H Beam 12m Building Structure Steel Angle

Building Structures Angle S235 S355 S195 Construction Structural Steel

Brief Introduction

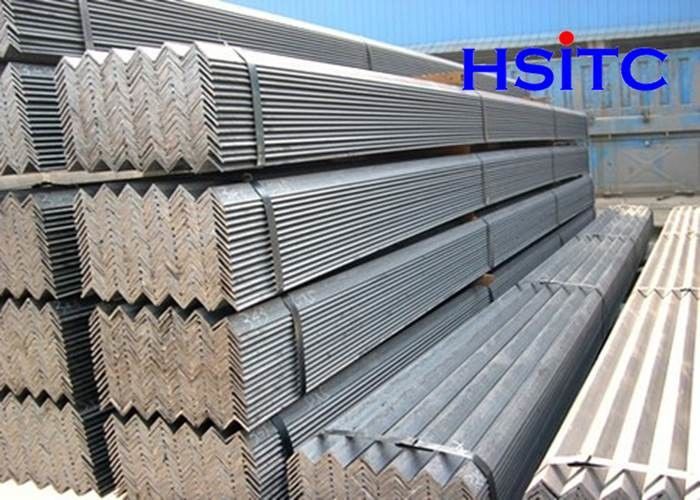

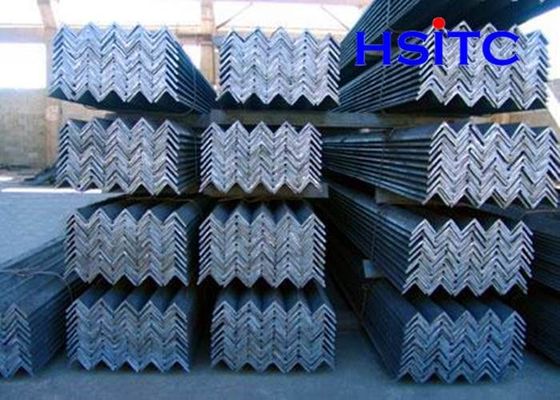

Angle steel, commonly known as Angle iron, is perpendicular to each other on both sides into the Angle of the long steel.The Angle steel can be composed of different stress members according to the different needs of the structure, and can also be used as a connector between members.Widely used in all kinds of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting transport machinery, ships, industrial furnaces, reaction towers, container racks, cable ditch support, power piping, bus support installation, and warehouse shelves, etc.

It is mainly divided into two types: equilateral Angle steel and unequilateral Angle steel. Among them, unequilateral Angle steel can be divided into two types: unequilateral Angle steel and unequilateral Angle steel.The specification of Angle steel is expressed by the dimension of side length and side thickness.

Specification

At present, domestic Angle steel specifications for 2-20, with the length of the centimeter number for the number, the same number of Angle steel often 2-7 different edge thickness.The actual size and edge thickness of both sides of imported Angle steel shall be marked with relevant standards.Generally, the side length above 12.5cm is large Angle steel, the middle Angle steel between 12.5cm and 5cm, and the side length below 5cm is small Angle steel.

Equilateral Angle vector drawing The order of import and export Angle steel is generally based on the required specifications in use, and its steel number is the corresponding carbon bond steel number.Angle steel has no specific composition or series of properties except specification number.The delivery length of Angle steel is divided into fixed length and double length. The selection range of domestic Angle steel for fixed length is 3-9m, 4-12m, 4-19m and 6-19m according to the different specifications.The length of Angle steel made in Japan ranges from 6 to 15m.
